ROUTING · Catalog page 11

Cable protection and clips

Wrap and conduit to guard cable that moves or rubs, and nail-in clips for low-voltage runs.

Factory and panelRobotics and harnessLow-voltage install

1. Add items. Tap + Add on as many items as you need.
2. Set quantities. Adjust them in your quote list at the bottom of the screen.
3. Send one request. We reply with price and ship date within one business day.
Not sure which part?

Spiral wrap

Order-in

Polyethylene wrap that bundles and guards wire, and lets leads break out anywhere.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-SWB-06per roll
Inside dia.
4 mm
Outside dia.
6 mm
Bundle range
4 to 50 mm (0.16 to 2.0 in)
Roll
10 m
NR-SWB-10per roll
Inside dia.
7.5 mm
Outside dia.
10 mm
Bundle range
7.5 to 60 mm (0.3 to 2.4 in)
Roll
10 m
NR-SWB-12per roll
Inside dia.
9 mm
Outside dia.
12 mm
Bundle range
9 to 65 mm (0.35 to 2.6 in)
Roll
10 m
NR-SWB-19per roll
Inside dia.
15 mm
Outside dia.
19 mm
Bundle range
15 to 100 mm (0.6 to 3.9 in)
Roll
10 m

Item	Inside dia.	Outside dia.	Bundle range	Roll	Unit
NR-SWB-06	4 mm	6 mm	4 to 50 mm (0.16 to 2.0 in)	10 m	roll
NR-SWB-10	7.5 mm	10 mm	7.5 to 60 mm (0.3 to 2.4 in)	10 m	roll
NR-SWB-12	9 mm	12 mm	9 to 65 mm (0.35 to 2.6 in)	10 m	roll
NR-SWB-19	15 mm	19 mm	15 to 100 mm (0.6 to 3.9 in)	10 m	roll

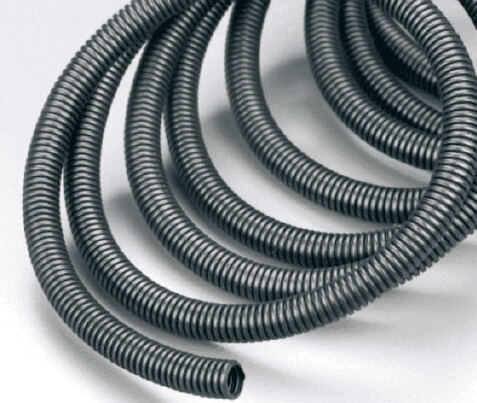

Corrugated conduit

Order-in

Flexible conduit in nylon 6, polyethylene or polypropylene. Black or grey.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-CT10per roll
Inside dia.
6.5 mm
Outside dia.
10.0 mm
Min. bend radius
14 mm
Roll
200 m
NR-CT13per roll
Inside dia.
9.5 mm
Outside dia.
13.0 mm
Min. bend radius
20 mm
Roll
100 m
NR-CT15.8per roll
Inside dia.
12.0 mm
Outside dia.
15.8 mm
Min. bend radius
27 mm
Roll
100 m
NR-CT21.2per roll
Inside dia.
17.0 mm
Outside dia.
21.2 mm
Min. bend radius
40 mm
Roll
100 m
NR-CT28.5per roll
Inside dia.
23.0 mm
Outside dia.
28.5 mm
Min. bend radius
47 mm
Roll
50 m

Item	Inside dia.	Outside dia.	Min. bend radius	Roll	Unit
NR-CT10	6.5 mm	10.0 mm	14 mm	200 m	roll
NR-CT13	9.5 mm	13.0 mm	20 mm	100 m	roll
NR-CT15.8	12.0 mm	15.8 mm	27 mm	100 m	roll
NR-CT21.2	17.0 mm	21.2 mm	40 mm	100 m	roll
NR-CT28.5	23.0 mm	28.5 mm	47 mm	50 m	roll

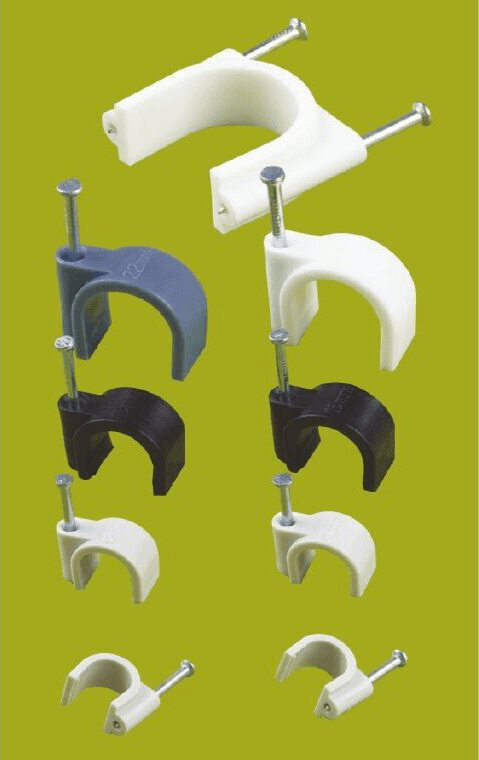

Nail-in cable clips

Order-in

Polyethylene clip with the steel nail already fitted. White, grey, black or brown.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-NC6per pack of 100
Cable diameter
6 mm (0.24 in)
Nail
1.8 × 17 mm
NR-NC7per pack of 100
Cable diameter
7 mm (0.28 in)
Nail
1.8 × 17 mm
NR-NC8per pack of 100
Cable diameter
8 mm (0.31 in)
Nail
2.0 × 19 mm
NR-NC10per pack of 100
Cable diameter
10 mm (0.39 in)
Nail
2.1 × 23 mm

Item	Cable diameter	Nail	Unit
NR-NC6	6 mm (0.24 in)	1.8 × 17 mm	pack of 100
NR-NC7	7 mm (0.28 in)	1.8 × 17 mm	pack of 100
NR-NC8	8 mm (0.31 in)	2.0 × 19 mm	pack of 100
NR-NC10	10 mm (0.39 in)	2.1 × 23 mm	pack of 100

Conduit bend radius is for a fixed installation. Nail-in clips are for low-voltage coax, data and security cable. Choose the size at or just above the cable diameter.

Need a quantity price?

Add items from the tables above, or type item numbers on the quote page. We reply with price and a ship date within one business day.

Request a quote

Can't find what you need? We source to specification. Describe the part, size or rating and we'll come back with options.

Request an item we don't list
