CRIMP TERMINALS · Catalog page 8

Insulated terminals

Vinyl-insulated crimp terminals in the three standard wire ranges: red, blue and yellow.

Factory and panelRobotics and harnessData center
Insulated terminals
  1. 1. Add items. Tap + Add on as many items as you need.
  2. 2. Set quantities. Adjust them in your quote list at the bottom of the screen.
  3. 3. Send one request. We reply with price and ship date within one business day.
  4. Not sure which part?

Ring terminals

Order-in

Max current 19 A red, 27 A blue, 48 A yellow.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

  • NR-RVS1.25-4per pack of 100
    Wire awg
    22 to 16
    Stud
    #8
    Color
    Red
  • NR-RV1.25-5per pack of 100
    Wire awg
    22 to 16
    Stud
    #10
    Color
    Red
  • NR-RVS2-4per pack of 100
    Wire awg
    16 to 14
    Stud
    #8
    Color
    Blue
  • NR-RVS2-5per pack of 100
    Wire awg
    16 to 14
    Stud
    #10
    Color
    Blue
  • NR-RV2-6per pack of 100
    Wire awg
    16 to 14
    Stud
    1/4 in
    Color
    Blue
  • NR-RV2-8per pack of 100
    Wire awg
    16 to 14
    Stud
    5/16 in
    Color
    Blue
  • NR-RVS5.5-4per pack of 100
    Wire awg
    12 to 10
    Stud
    #8
    Color
    Yellow
  • NR-RV5.5-5per pack of 100
    Wire awg
    12 to 10
    Stud
    #10
    Color
    Yellow
  • NR-RV5.5-6per pack of 100
    Wire awg
    12 to 10
    Stud
    1/4 in
    Color
    Yellow
  • NR-RV5.5-8per pack of 100
    Wire awg
    12 to 10
    Stud
    5/16 in
    Color
    Yellow
  • NR-RV5.5-10per pack of 100
    Wire awg
    12 to 10
    Stud
    3/8 in
    Color
    Yellow

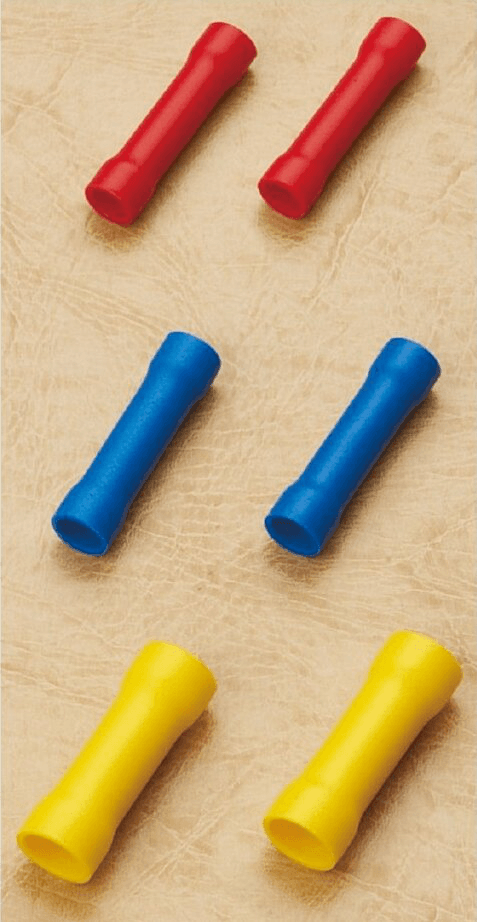

Butt connectors

Order-in

Inline splice. Sealed version on page 7.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Butt connectors
  • NR-BV1.25per pack of 100
    Wire awg
    22 to 16
    Color
    Red
    Max current
    19 A
  • NR-BV2per pack of 100
    Wire awg
    16 to 14
    Color
    Blue
    Max current
    27 A
  • NR-BV5.5per pack of 100
    Wire awg
    12 to 10
    Color
    Yellow
    Max current
    48 A
  • NR-BV8per pack of 100
    Wire awg
    8
    Color
    Red
    Max current
    62 A

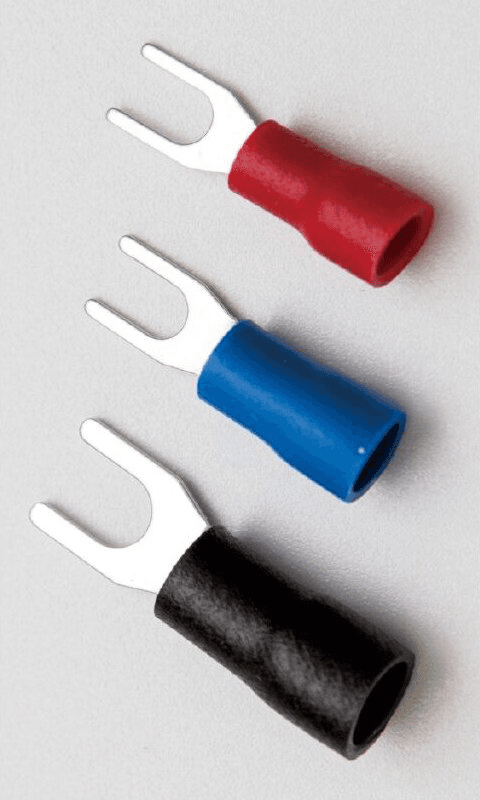

Fork terminals

Order-in

Slides under a screw head without removing the screw.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Fork terminals
  • NR-SVS1.25-4per pack of 100
    Wire awg
    22 to 16
    Stud
    #8
    Color
    Red
  • NR-SVS1.25-5per pack of 100
    Wire awg
    22 to 16
    Stud
    #10
    Color
    Red
  • NR-SVS2-4per pack of 100
    Wire awg
    16 to 14
    Stud
    #8
    Color
    Blue
  • NR-SVS2-5per pack of 100
    Wire awg
    16 to 14
    Stud
    #10
    Color
    Blue
  • NR-SVS5.5-4per pack of 100
    Wire awg
    12 to 10
    Stud
    #8
    Color
    Yellow
  • NR-SV5.5-5per pack of 100
    Wire awg
    12 to 10
    Stud
    #10
    Color
    Yellow

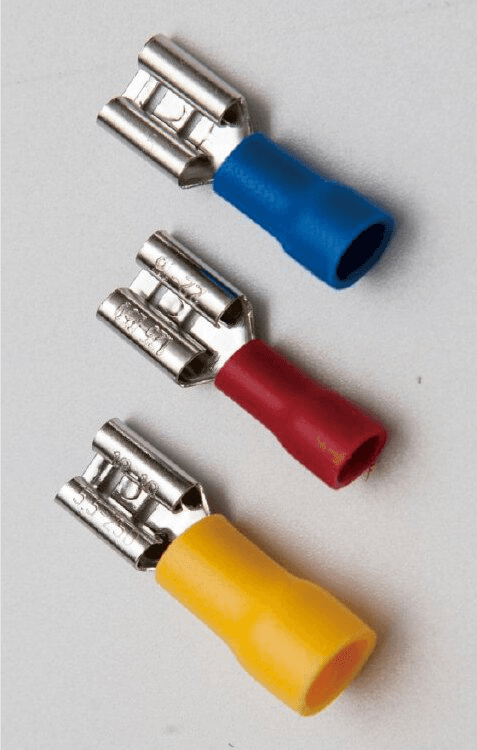

Quick disconnects

Order-in

Push-on tab connectors, .187 and .250 in.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Quick disconnects
  • NR-FDD1.25-187(8)per pack of 100
    Type
    Female
    Wire awg
    22 to 16
    Tab
    .187 in
    Max
    10 A
  • NR-FDD1.25-250per pack of 100
    Type
    Female
    Wire awg
    22 to 16
    Tab
    .250 in
    Max
    10 A
  • NR-FDD2-187(8)per pack of 100
    Type
    Female
    Wire awg
    16 to 14
    Tab
    .187 in
    Max
    15 A
  • NR-FDD2-250per pack of 100
    Type
    Female
    Wire awg
    16 to 14
    Tab
    .250 in
    Max
    15 A
  • NR-FDD5.5-250per pack of 100
    Type
    Female
    Wire awg
    12 to 10
    Tab
    .250 in
    Max
    24 A
  • NR-MDD1.25-250per pack of 100
    Type
    Male
    Wire awg
    22 to 16
    Tab
    .250 in
    Max
    10 A
  • NR-MDD2-250per pack of 100
    Type
    Male
    Wire awg
    16 to 14
    Tab
    .250 in
    Max
    15 A
  • NR-MDD5.5-250per pack of 100
    Type
    Male
    Wire awg
    12 to 10
    Tab
    .250 in
    Max
    24 A

Need a quantity price?

Add items from the tables above, or type item numbers on the quote page. We reply with price and a ship date within one business day.

Request a quote

Can't find what you need? We source to specification. Describe the part, size or rating and we'll come back with options.

Request an item we don't list
