CRIMP TERMINALS · Catalog page 9

Ferrules and lugs

Wire-end ferrules for terminal blocks, and copper tube lugs for power and grounding cable.

Data centerFactory and panelSolar and outdoorRobotics and harness

1. Add items. Tap + Add on as many items as you need.
2. Set quantities. Adjust them in your quote list at the bottom of the screen.
3. Send one request. We reply with price and ship date within one business day.
Not sure which part?

Insulated ferrules

Order-in

Crimp onto stranded wire so every strand lands in the terminal.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-E0508per pack of 100
Wire awg
22
Wire mm²
0.5
Pin length
8 mm
Overall length
14 mm
NR-E7508per pack of 100
Wire awg
20
Wire mm²
0.75
Pin length
8 mm
Overall length
14.6 mm
NR-E1008per pack of 100
Wire awg
18
Wire mm²
1.0
Pin length
8 mm
Overall length
14.6 mm
NR-E1508per pack of 100
Wire awg
16
Wire mm²
1.5
Pin length
8 mm
Overall length
14.6 mm
NR-E2508per pack of 100
Wire awg
14
Wire mm²
2.5
Pin length
8 mm
Overall length
15.2 mm
NR-E4009per pack of 100
Wire awg
12
Wire mm²
4
Pin length
9 mm
Overall length
16.5 mm
NR-E6012per pack of 100
Wire awg
10
Wire mm²
6
Pin length
12 mm
Overall length
20 mm

Item	Wire awg	Wire mm²	Pin length	Overall length	Unit
NR-E0508	22	0.5	8 mm	14 mm	pack of 100
NR-E7508	20	0.75	8 mm	14.6 mm	pack of 100
NR-E1008	18	1.0	8 mm	14.6 mm	pack of 100
NR-E1508	16	1.5	8 mm	14.6 mm	pack of 100
NR-E2508	14	2.5	8 mm	15.2 mm	pack of 100
NR-E4009	12	4	9 mm	16.5 mm	pack of 100
NR-E6012	10	6	12 mm	20 mm	pack of 100

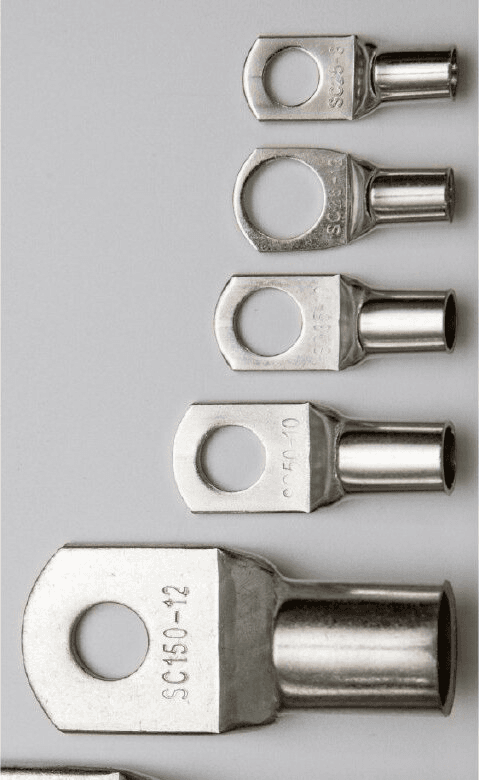

Copper tube lugs

Order-in

One-hole compression lug with a sight hole to confirm the cable is seated.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-SC10-6per pack of 100
Conductor
10 mm²
Nearest awg
8
Stud hole
1/4 in (6.5 mm)
Barrel id
4.5 mm
Length
25 mm
NR-SC16-6per pack of 100
Conductor
16 mm²
Nearest awg
6
Stud hole
1/4 in (6.5 mm)
Barrel id
5.4 mm
Length
30 mm
NR-SC16-8per pack of 100
Conductor
16 mm²
Nearest awg
6
Stud hole
5/16 in (8.4 mm)
Barrel id
5.4 mm
Length
30 mm
NR-SC25-8per pack of 100
Conductor
25 mm²
Nearest awg
4
Stud hole
5/16 in (8.4 mm)
Barrel id
6.8 mm
Length
33 mm
NR-SC35-8per pack of 100
Conductor
35 mm²
Nearest awg
2
Stud hole
5/16 in (8.4 mm)
Barrel id
8.2 mm
Length
38 mm
NR-SC35-10per pack of 100
Conductor
35 mm²
Nearest awg
2
Stud hole
3/8 in (10.5 mm)
Barrel id
8.2 mm
Length
38 mm
NR-SC50-10per pack of 100
Conductor
50 mm²
Nearest awg
1/0
Stud hole
3/8 in (10.5 mm)
Barrel id
9.5 mm
Length
45 mm
NR-SC70-10per pack of 100
Conductor
70 mm²
Nearest awg
2/0
Stud hole
3/8 in (10.5 mm)
Barrel id
11.2 mm
Length
50 mm
NR-SC95-12per pack of 100
Conductor
95 mm²
Nearest awg
3/0
Stud hole
1/2 in (13 mm)
Barrel id
13.5 mm
Length
55 mm
NR-SC120-12per pack of 100
Conductor
120 mm²
Nearest awg
4/0
Stud hole
1/2 in (13 mm)
Barrel id
15 mm
Length
63 mm

Item	Conductor	Nearest awg	Stud hole	Barrel id	Length	Unit
NR-SC10-6	10 mm²	8	1/4 in (6.5 mm)	4.5 mm	25 mm	pack of 100
NR-SC16-6	16 mm²	6	1/4 in (6.5 mm)	5.4 mm	30 mm	pack of 100
NR-SC16-8	16 mm²	6	5/16 in (8.4 mm)	5.4 mm	30 mm	pack of 100
NR-SC25-8	25 mm²	4	5/16 in (8.4 mm)	6.8 mm	33 mm	pack of 100
NR-SC35-8	35 mm²	2	5/16 in (8.4 mm)	8.2 mm	38 mm	pack of 100
NR-SC35-10	35 mm²	2	3/8 in (10.5 mm)	8.2 mm	38 mm	pack of 100
NR-SC50-10	50 mm²	1/0	3/8 in (10.5 mm)	9.5 mm	45 mm	pack of 100
NR-SC70-10	70 mm²	2/0	3/8 in (10.5 mm)	11.2 mm	50 mm	pack of 100
NR-SC95-12	95 mm²	3/0	1/2 in (13 mm)	13.5 mm	55 mm	pack of 100
NR-SC120-12	120 mm²	4/0	1/2 in (13 mm)	15 mm	63 mm	pack of 100

Lugs are made to metric conductor sizes. Nearest AWG is a guide: check the barrel ID against your cable before ordering. Crimp tools for both lines are on page 10.

Need a quantity price?

Add items from the tables above, or type item numbers on the quote page. We reply with price and a ship date within one business day.

Request a quote

Can't find what you need? We source to specification. Describe the part, size or rating and we'll come back with options.

Request an item we don't list
