MOUNTING · Catalog page 6

Mounts, clips and clamps

Ways to fix a tied bundle to a panel, frame or edge, with or without drilling.

Data centerFactory and panelSolar and outdoorRobotics and harness
Mounts, clips and clamps
  1. 1. Add items. Tap + Add on as many items as you need.
  2. 2. Set quantities. Adjust them in your quote list at the bottom of the screen.
  3. 3. Send one request. We reply with price and ship date within one business day.
  4. Not sure which part?

Saddle mounts

Order-in

Screw-fixed anchor for ties up to 9 mm wide. Natural or black.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

  • NR-SM2per pack of 100
    Base
    22 × 16 mm
    Tie slot
    9.0 mm
    Screw hole
    6.3 mm
  • NR-SM3per pack of 100
    Base
    22 × 16 mm
    Tie slot
    9.0 mm
    Screw hole
    5.3 mm
  • NR-SM4per pack of 100
    Base
    29 × 15 mm
    Tie slot
    9.4 mm
    Screw hole
    5.3 mm

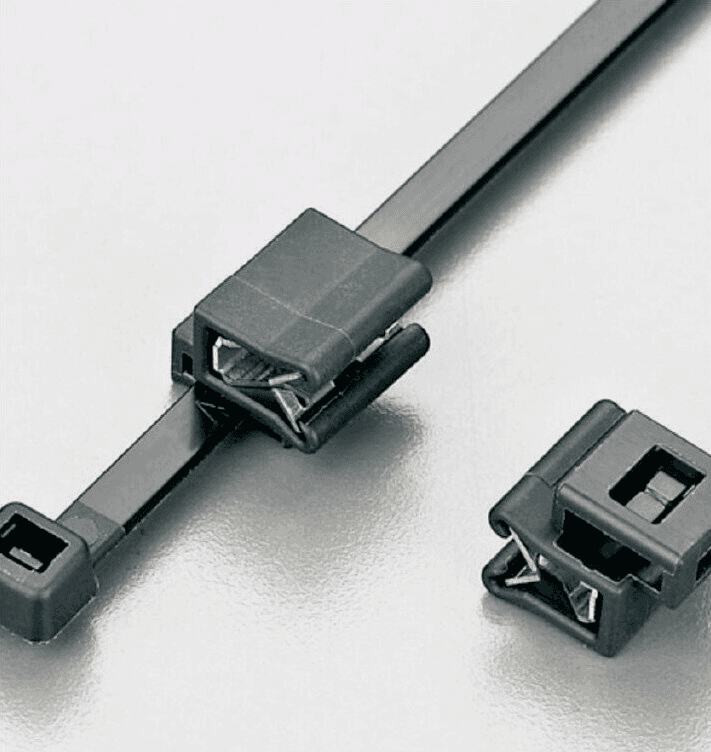

Edge clips

Order-in

Push onto a panel edge; a metal clamp grips. Takes a 4.8 mm tie.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Edge clips
  • NR-ESS-1per pack of 100
    Panel edge
    1 to 3 mm
    Tie width
    4.8 mm
    Tie entry
    Top
  • NR-ESS-3per pack of 100
    Panel edge
    3 to 6 mm
    Tie width
    4.8 mm
    Tie entry
    Top
  • NR-ESC-1per pack of 100
    Panel edge
    1 to 3 mm
    Tie width
    4.8 mm
    Tie entry
    Side
  • NR-ESC-3per pack of 100
    Panel edge
    3 to 6 mm
    Tie width
    4.8 mm
    Tie entry
    Side

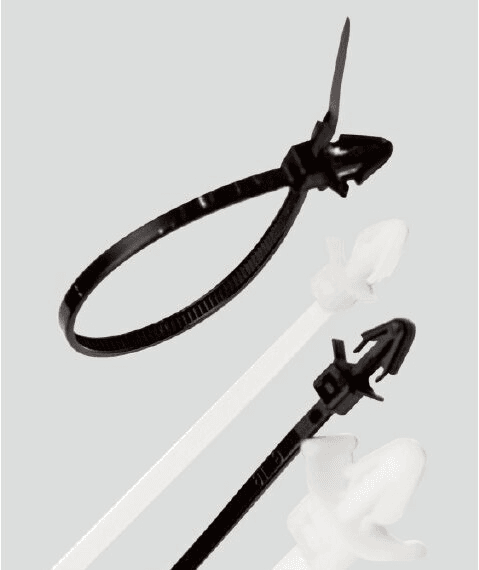

Push-mount ties

Order-in

50 lb, 4.8 mm tie with a winged head that snaps into a panel hole.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Push-mount ties
  • NR-4.8x120PTper pack of 100
    Length
    4.7 in
    Max bundle
    1.0 in
    Hole
    6.4 mm
    Panel
    3.2 mm
  • NR-4.8x160PTper pack of 100
    Length
    6.3 in
    Max bundle
    1.5 in
    Hole
    6.4 mm
    Panel
    3.2 mm
  • NR-4.8x190PTper pack of 100
    Length
    7.5 in
    Max bundle
    1.8 in
    Hole
    6.4 mm
    Panel
    3.2 mm

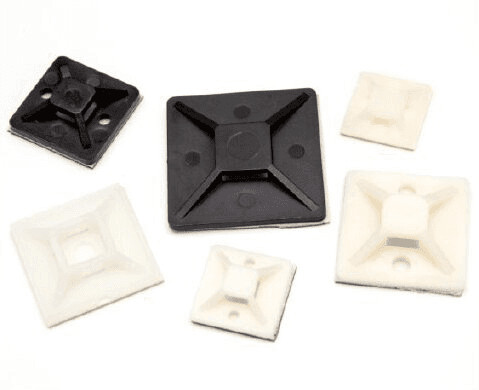

Adhesive tie mounts

Order-in

Peel-and-stick foam backing. Most sizes also take a screw.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Adhesive tie mounts
  • NR-TM-20per pack of 100
    Base
    20 × 20 mm
    Tie slot
    4.5 mm
    Screw hole
    3 mm
  • NR-TM-25per pack of 100
    Base
    25 × 25 mm
    Tie slot
    6.2 mm
    Screw hole
    3.5 mm
  • NR-TM-30per pack of 100
    Base
    30 × 30 mm
    Tie slot
    6.4 mm
    Screw hole
    4.5 mm
  • NR-TM-40per pack of 100
    Base
    40 × 40 mm
    Tie slot
    10.8 mm
    Screw hole
    None

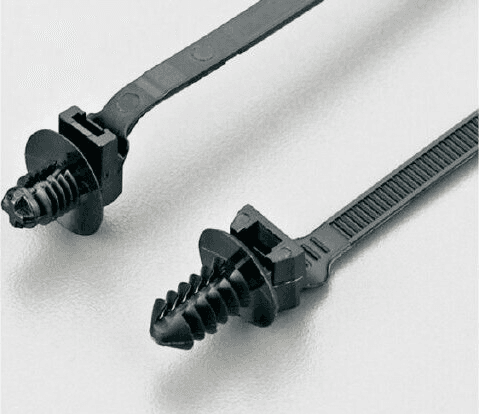

Fir-tree ties

Order-in

40 lb tie with a ribbed stud that pushes into a panel hole.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

Fir-tree ties
  • NR-5.3x180FTTper pack of 100
    Max bundle
    1.2 in
    Hole
    6.5 to 7 mm
    Panel
    0.6 to 4.5 mm
  • NR-5.4x210FTTper pack of 100
    Max bundle
    1.9 in
    Hole
    6.5 to 7.2 mm
    Panel
    1 to 8 mm

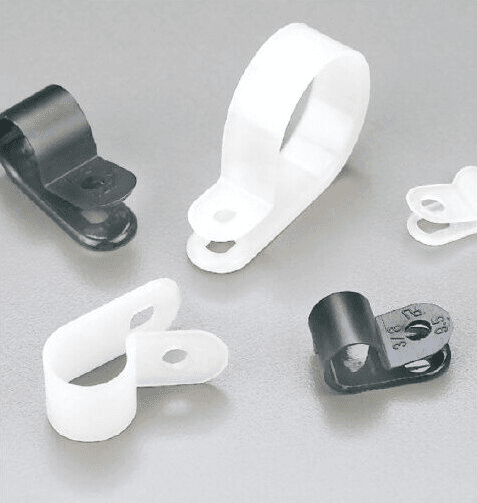

R-type cable clamps

Order-in

Nylon PA66 (6/6) loop clamp. Lay the cable in and fix with one screw.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

R-type cable clamps
  • NR-1/4Rper pack of 100
    Cable diameter
    1/4 in (6.35 mm)
    Clamp width
    10 mm
  • NR-3/8Rper pack of 100
    Cable diameter
    3/8 in (9.5 mm)
    Clamp width
    12 mm
  • NR-1/2Rper pack of 100
    Cable diameter
    1/2 in (12.7 mm)
    Clamp width
    12 mm
  • NR-3/4Rper pack of 100
    Cable diameter
    3/4 in (19.4 mm)
    Clamp width
    12 mm
  • NR-1Rper pack of 100
    Cable diameter
    1 in (25.4 mm)
    Clamp width
    12 mm

Edge clips are heat-stabilized nylon PA66 (6/6), rated −40 °C to 105 °C (−40 °F to 221 °F). Fir-tree and push-mount ties come in standard or heat-stabilized nylon PA66 (6/6). Panel is the panel thickness the part fits.

Need a quantity price?

Add items from the tables above, or type item numbers on the quote page. We reply with price and a ship date within one business day.

Request a quote

Can't find what you need? We source to specification. Describe the part, size or rating and we'll come back with options.

Request an item we don't list
