INSULATION · Catalog page 7

Heat shrink

Tubing on the roll, bench kits, and sealed splices for wet or outdoor wiring.

Factory and panelSolar and outdoorRobotics and harness

1. Add items. Tap + Add on as many items as you need.
2. Set quantities. Adjust them in your quote list at the bottom of the screen.
3. Send one request. We reply with price and ship date within one business day.
Not sure which part?

Tubing on the roll · 2:1

Order-in

Shrinks to half its supplied diameter. Black, white, red, blue, yellow, green and more.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-DRS-3per roll
Id supplied
3 mm
Inch size
1/8 in
Id recovered
1.5 mm
Wall
0.45 mm
Roll
200 m
NR-DRS-5per roll
Id supplied
5 mm
Inch size
3/16 in
Id recovered
2.5 mm
Wall
0.55 mm
Roll
100 m
NR-DRS-6per roll
Id supplied
6 mm
Inch size
1/4 in
Id recovered
3 mm
Wall
0.55 mm
Roll
100 m
NR-DRS-10per roll
Id supplied
10 mm
Inch size
3/8 in
Id recovered
5 mm
Wall
0.60 mm
Roll
100 m
NR-DRS-13per roll
Id supplied
13 mm
Inch size
1/2 in
Id recovered
6.5 mm
Wall
0.70 mm
Roll
100 m
NR-DRS-20per roll
Id supplied
20 mm
Inch size
3/4 in
Id recovered
10 mm
Wall
0.90 mm
Roll
50 m
NR-DRS-25per roll
Id supplied
25 mm
Inch size
1 in
Id recovered
12.5 mm
Wall
0.90 mm
Roll
50 m

Item	Id supplied	Inch size	Id recovered	Wall	Roll	Unit
NR-DRS-3	3 mm	1/8 in	1.5 mm	0.45 mm	200 m	roll
NR-DRS-5	5 mm	3/16 in	2.5 mm	0.55 mm	100 m	roll
NR-DRS-6	6 mm	1/4 in	3 mm	0.55 mm	100 m	roll
NR-DRS-10	10 mm	3/8 in	5 mm	0.60 mm	100 m	roll
NR-DRS-13	13 mm	1/2 in	6.5 mm	0.70 mm	100 m	roll
NR-DRS-20	20 mm	3/4 in	10 mm	0.90 mm	50 m	roll
NR-DRS-25	25 mm	1 in	12.5 mm	0.90 mm	50 m	roll

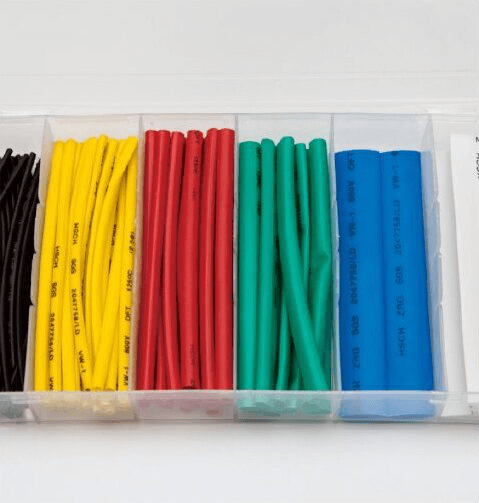

Tubing kits · 100 pieces

Order-in

Cut lengths of 100 mm in six diameters, boxed.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-100Bper kit
Color
Black
Pieces by diameter
30 × 1.5 mm, 30 × 2.5, 20 × 4, 10 × 6, 6 × 10, 4 × 13
NR-100Cper kit
Color
One color per size
Pieces by diameter
30 × 1.5 mm, 30 × 2.5, 20 × 4, 10 × 6, 6 × 10, 4 × 13

Item	Color	Pieces by diameter	Unit	Add to quote
NR-100B	Black	30 × 1.5 mm, 30 × 2.5, 20 × 4, 10 × 6, 6 × 10, 4 × 13	kit
NR-100C	One color per size	30 × 1.5 mm, 30 × 2.5, 20 × 4, 10 × 6, 6 × 10, 4 × 13	kit

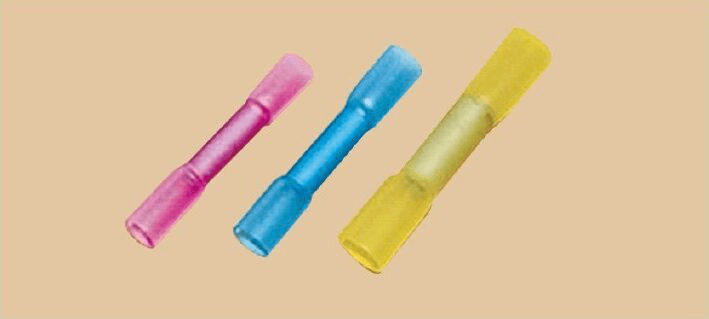

Heat-shrink butt connectors

Order-in

Crimp, then heat. The adhesive-lined sleeve seals the splice.

Brought in against your order, so you get the full range without paying for stock we guessed at. Lead time 24 to 48 hours.

NR-KY-1per pack of 100
Wire
22 to 16 AWG
Color
Red
Length
37 mm
NR-KY-2per pack of 100
Wire
16 to 14 AWG
Color
Blue
Length
37 mm
NR-KY-5per pack of 100
Wire
12 to 10 AWG
Color
Yellow
Length
52 mm

Item	Wire	Color	Length	Unit
NR-KY-1	22 to 16 AWG	Red	37 mm	pack of 100
NR-KY-2	16 to 14 AWG	Blue	37 mm	pack of 100
NR-KY-5	12 to 10 AWG	Yellow	52 mm	pack of 100

Inch size is the nearest U.S. trade size. Wall is the wall thickness after shrinking. Butt connectors: polyolefin sleeve with hot-melt adhesive lining and tinned copper barrel, rated −55 °C to 125 °C (−67 °F to 257 °F).

Need a quantity price?

Add items from the tables above, or type item numbers on the quote page. We reply with price and a ship date within one business day.

Request a quote

Can't find what you need? We source to specification. Describe the part, size or rating and we'll come back with options.

Request an item we don't list
